Product Description

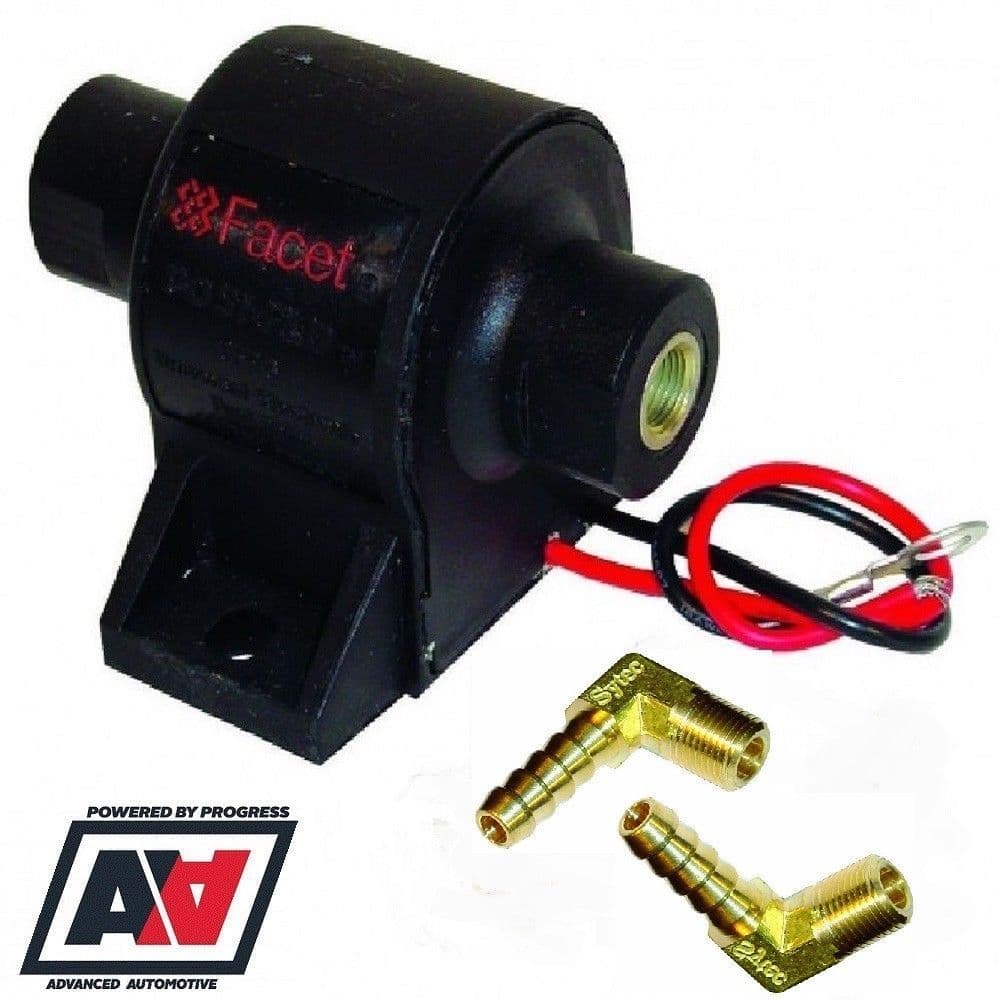

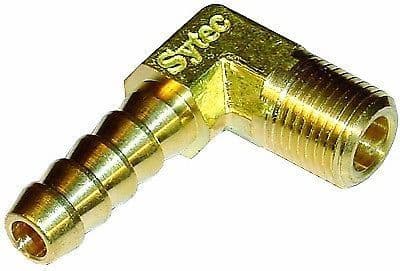

Facet 60104 Posi-Flow Fuel Pump And 6mm 90 Degree L Shaped Unions

A Universal Posi-Flow 12v Electric Fuel Pump
Low Pressure For Carburettors And Small Engines

Mounting Flange Design Is Identical To The Facet Cube Type Fuel Pump
This is an outstanding, lightweight universal electronic fuel pump with state-of-the-art design that can be used in all carburettor-equipped vehicles and also as a diesel lift pump.
In many applications, the advanced technology engineered into the Facet POSI-FLO fuel pump allows for a convenient interchange with the cube fuel pump.

In addition it runs quieter, 65DB, versus the noise levels exhibited by earlier competitive solid state technologies.

It is rated for 6000 hours of performance.

The Facet Posi-Flo Fuel Pump's self-priming capabilities provide up to 12 inches of fuel lift and no extended cranking is necessary to restart the engine if 'out-of-fuel' conditions occur.

Specifications - Posi-Flow Pump
Pump:- 60104 With 6mm 90 Degree Fittings Inlet And Outlet For 6mm Bore Fuel Hose
Voltage:-12v
Earth:- Neg
Pressure (Psi):- 1.5-4.0
Flow:- US Gallons/Hr:-25
Dry Prime Height in Mtrs:- 0.3
Thread Size:- 1/8th nptf
Operating Temperature:- -40º F to 180° F (all Models)
Legal Requirements:- Certified & Complies With EEC 95/54 Requirements
Length:- 85mm
Height:- 60mm
Weight:-0.35kg
Possible Fuel Unions That Can Be Used With This Fuel Pump Are Available Also From Our Shop

Applications:- Motorsport, Industrial, Marine, Agriculture

Specifications

Type
Fuel Pump
Brand
Facet
Product Code
60104
