Product Description

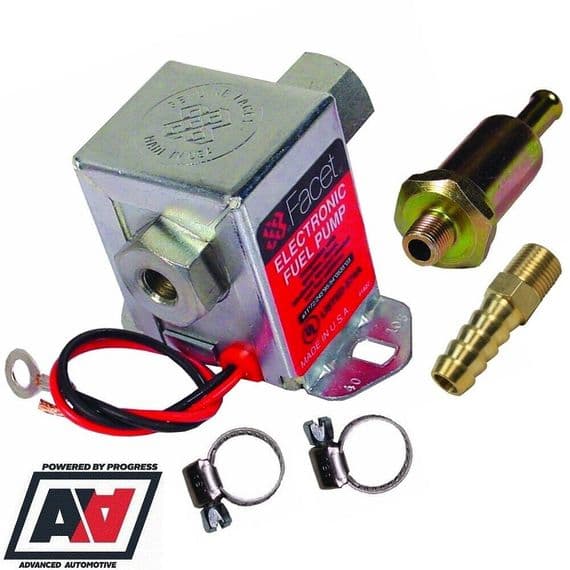

Facet 40107 Cube Type 5/16 - 8mm Fuel Pump Kit

Recommended For Competition Use.

High Operating Pressure At 7 To 10 Psi.
A Good Reliable Fuel Pump For Competition Use And Perfect For Twin Carburettors.

This 8mm Hose Fuel Pump Kit Consists Of:-
1 Facet Cube Fuel Pump Model 40107 Rating 7 To 10 Psi

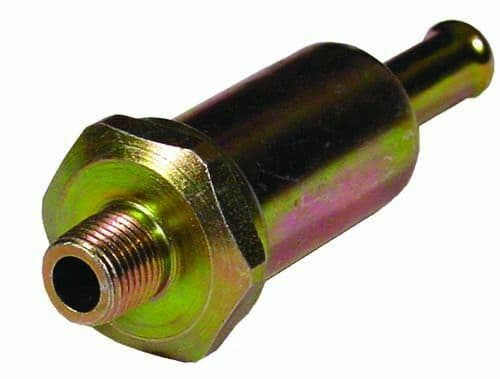

1 Plated Metal 1/8 nptf Inlet Fuel Filter Union Designed For 5/16 Or 8mm Bore Fuel Hose

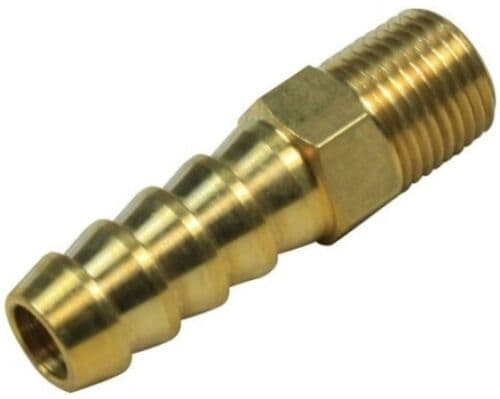

1 Brass 1/8 nptf Outlet Union Designed For 5/16 Or 8mm Bore Fuel Hose

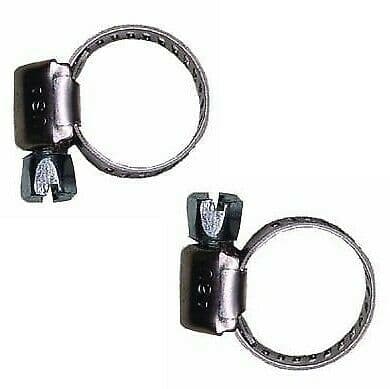

2 Stainless Steel Hose Clips

These solid-state technology electronic fuel pumps provide outputs up to 132.5 litres/hour and .68 bar.
Facet/Purolator Cube Fuel Pumps are self-priming with a dry lift capacity of 120 inches.
Two universal models provide complete coverage for all low and high-pressure carburettor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications.

All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.

Specification: -
Competition
Pump:- 40107
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 7-10
Flow:- US Gallons/Hr 34
Dry Prime Height in Mtrs:- 0.3
Thread Size:- 1/8th nptf
Positive Shut-Off Valve:- No
Check Valve:- No
Operating Temperature:- -31º F to 55° F (all Models)
Legal Requirements:- Certified & Complies With EEC 95/54 Requirements
Length:- 75mm
Height:- 60mm
Weight:-0.5kg

Applications:- Motorsport, Industrial, Marine, Agriculture

Specifications

Brand
Facet
Product Code
40107/8

Customer Reviews

Facet Solid State Cube Fuel Pump Kit 7.0 - 10 Psi With 8mm Unions & Fuel Filter

Product Code 40107/8
