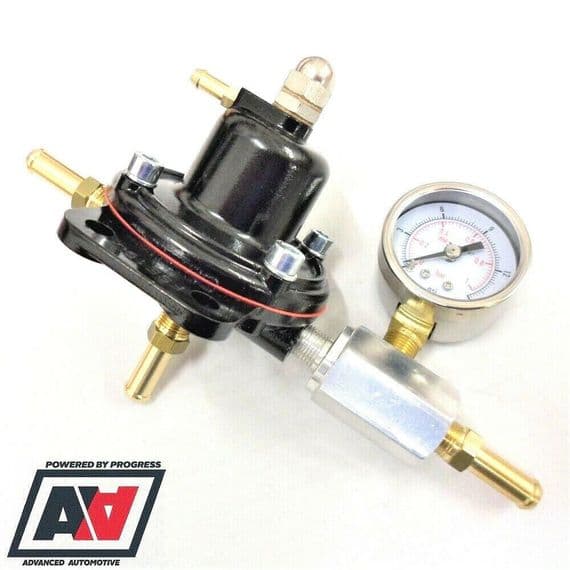

Malpassi Fuel Pressure Regulator & Gauge Injection To Carburettor Conv 8mm | Advanced Automotive
Malpassi Fuel Pressure Regulator & Gauge Injection To Carburettor Conv 8mm | Advanced Automotive
Malpassi Fuel Pressure Regulator & Gauge Injection To Carburettor Conv 8mm | Advanced Automotive
Malpassi Fuel Pressure Regulator & Gauge Injection To Carburettor Conv 8mm | Advanced Automotive
Malpassi Fuel Pressure Regulator & Gauge Injection To Carburettor Conv 8mm | Advanced Automotive

Product Description

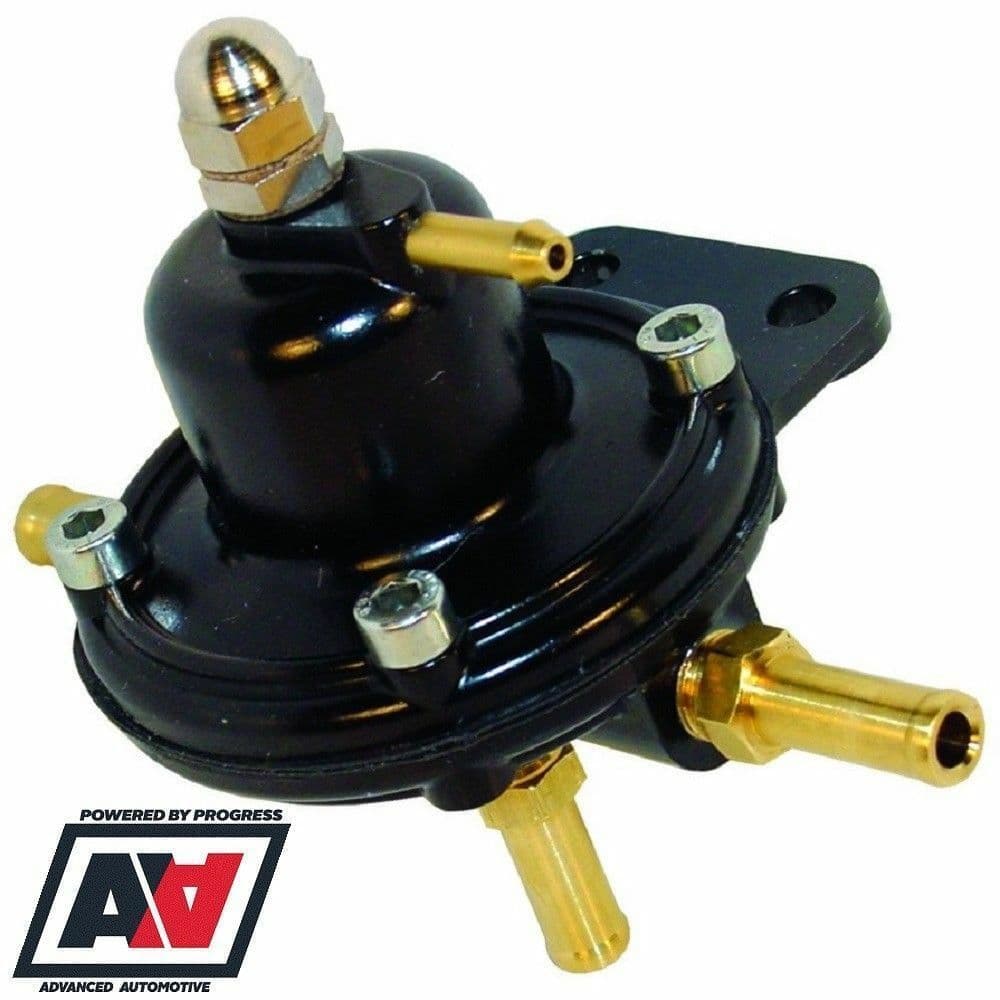

Malpassi Fuel Pressure Regulator For Fuel Injection To Carburettor Conversion

This regulator is designed for vehicles originally on fuel injection which now have carburettors, regulating fuel injection pressure of around 88 psi down to 2 psi
The regulator also allows you to keep the existing injection fuel pump, feed & return lines so you can revert back at a future date
Fully adjustable via the top dome and lock nut

Can also be used for turbo conversions that are using a carburettor
HAS 1 X 8mm INLET & 1 X OUTLET FOR PUSH ON FUEL HOSE
1 X 8mm RETURN TO TANK

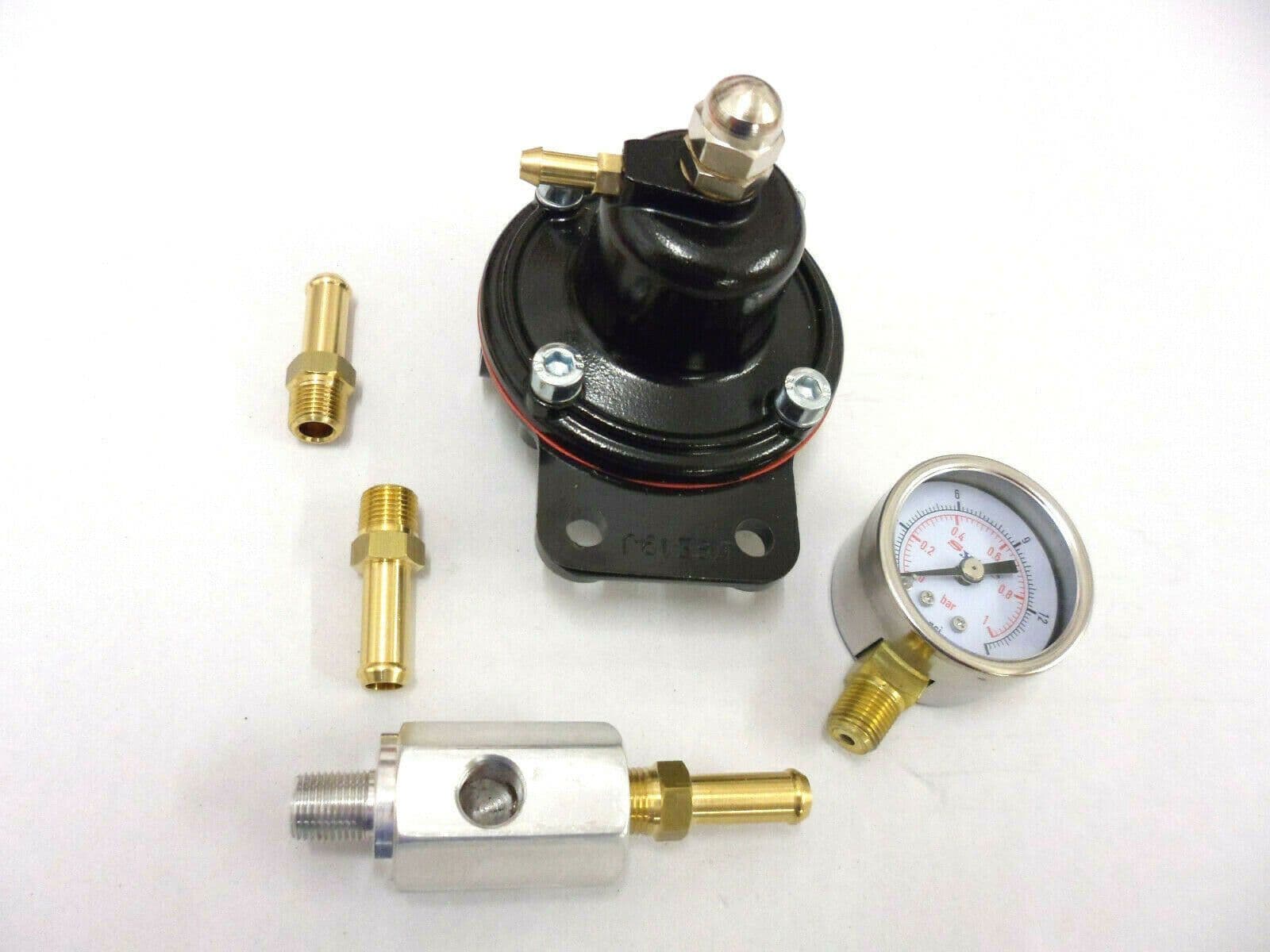

SUPPLIED WITH A MOUNTING BRACKET, HARDWARE & FITTING INSTRUCTIONS
Includes bracket and 3 x 8mm brass pipe tails for 8mm bore push-on fuel pipe

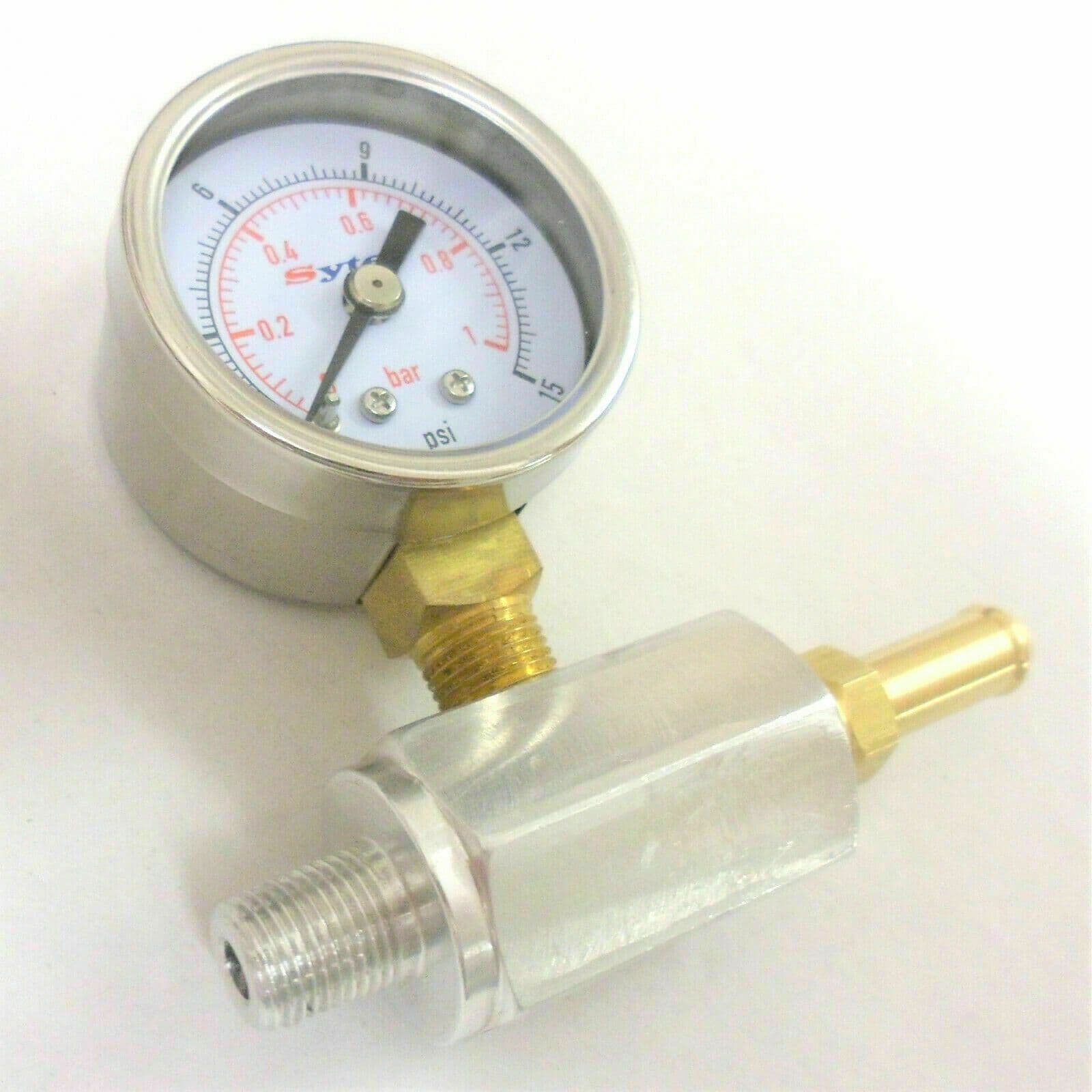

A FUEL PRESSURE SETUP GAUGE AND ADAPTOR
An In line fuel pressure gauge adaptor suitable for the Sytec/Malpassi FPR014 fuel pressure regulators using 8mm bore fuel hose.
Simple and quick to fit to the above regulator for monitoring, setup or testing of carburettor low pressure systems and can be left permanently installed although the gauge should be removed for safety.
This would be fitted to the outlet port of the Malpassi FPR014 regulator.

1 x ALUMIMIUM GAUGE ADAPTOR
1 x BRASS HOSE TAIL FOR 8MM BORE RUBBER FUEL HOSE
1 x BLANKING PLUG FOR THE ALUMINIUM GAUGE ADAPTOR PORT (used if the gauge is removed)

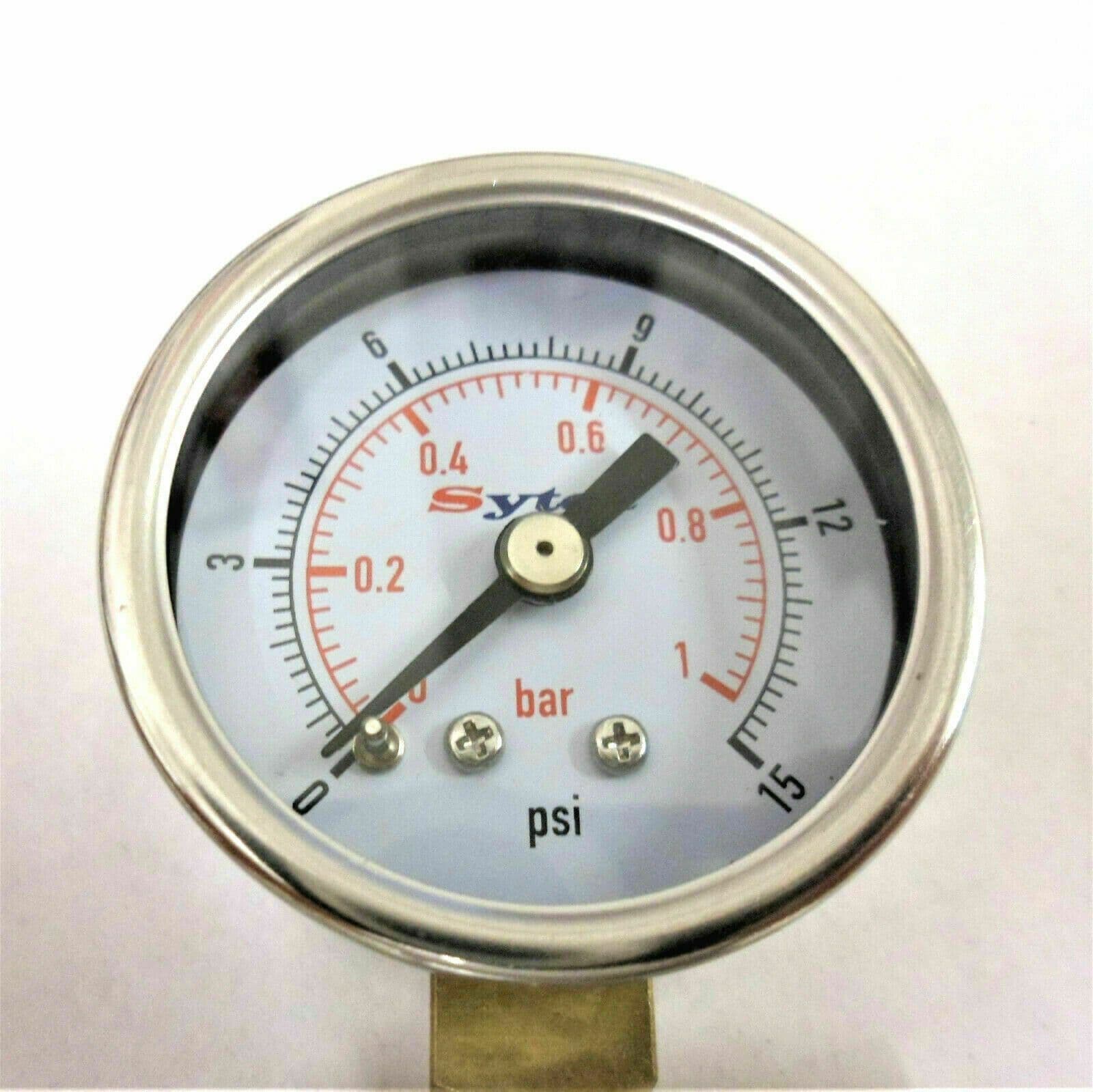

1 x SYTEC LOW PRESSURE FUEL GAUGE (0 to 15psi/0 to 1 bar)

Specifications

Type
Fuel Pressure Regulator
Brand
Malpassi
