Product Description

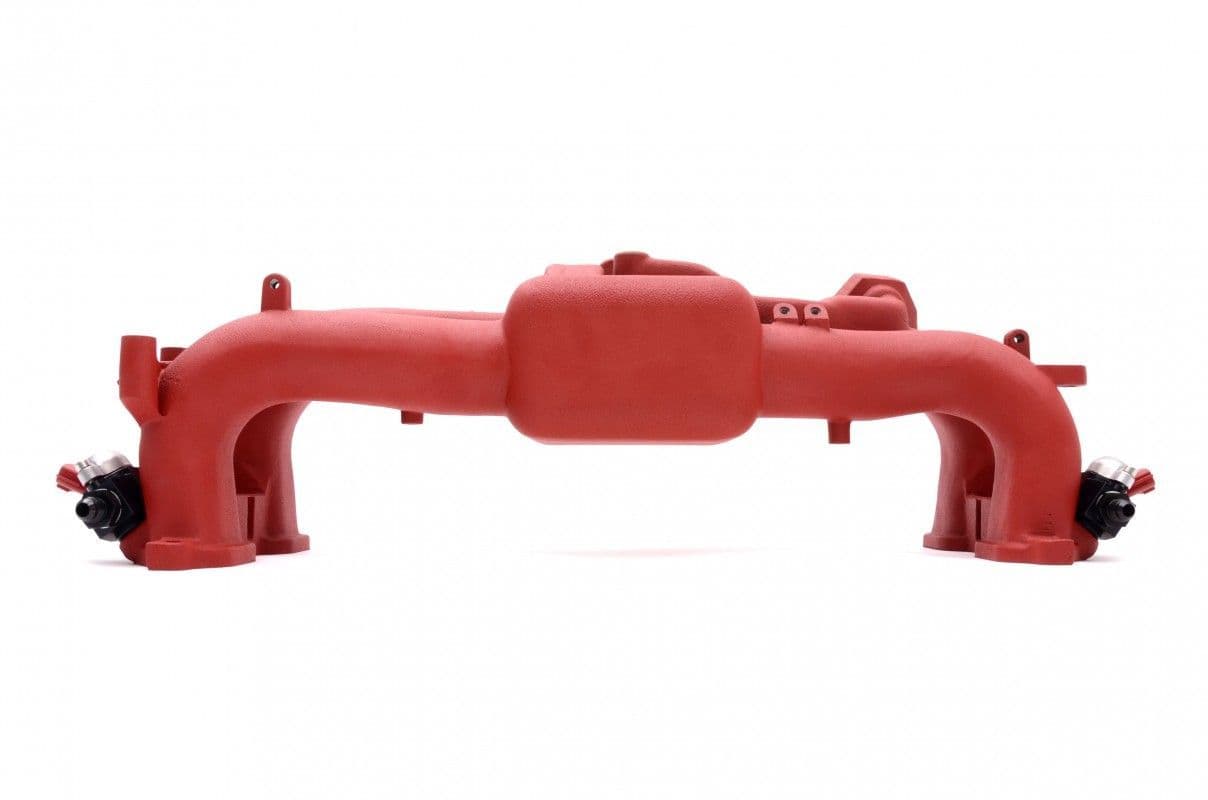

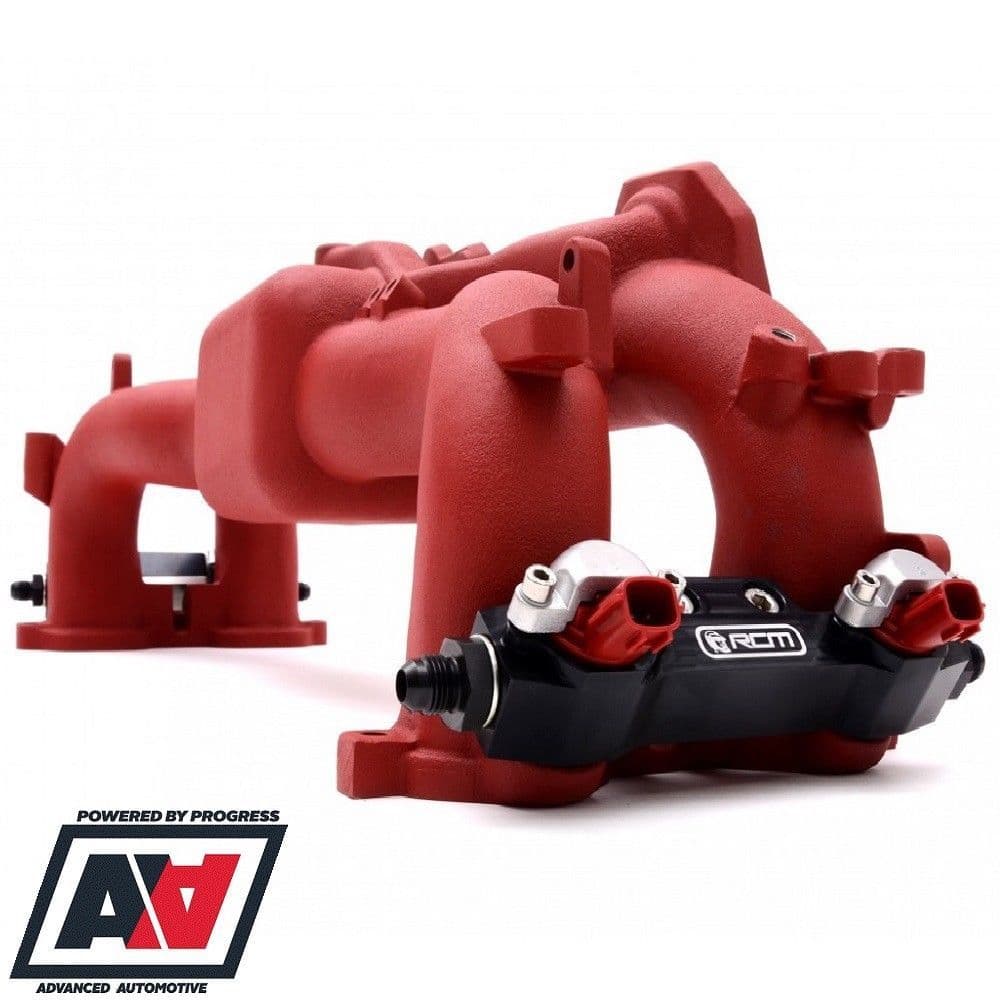

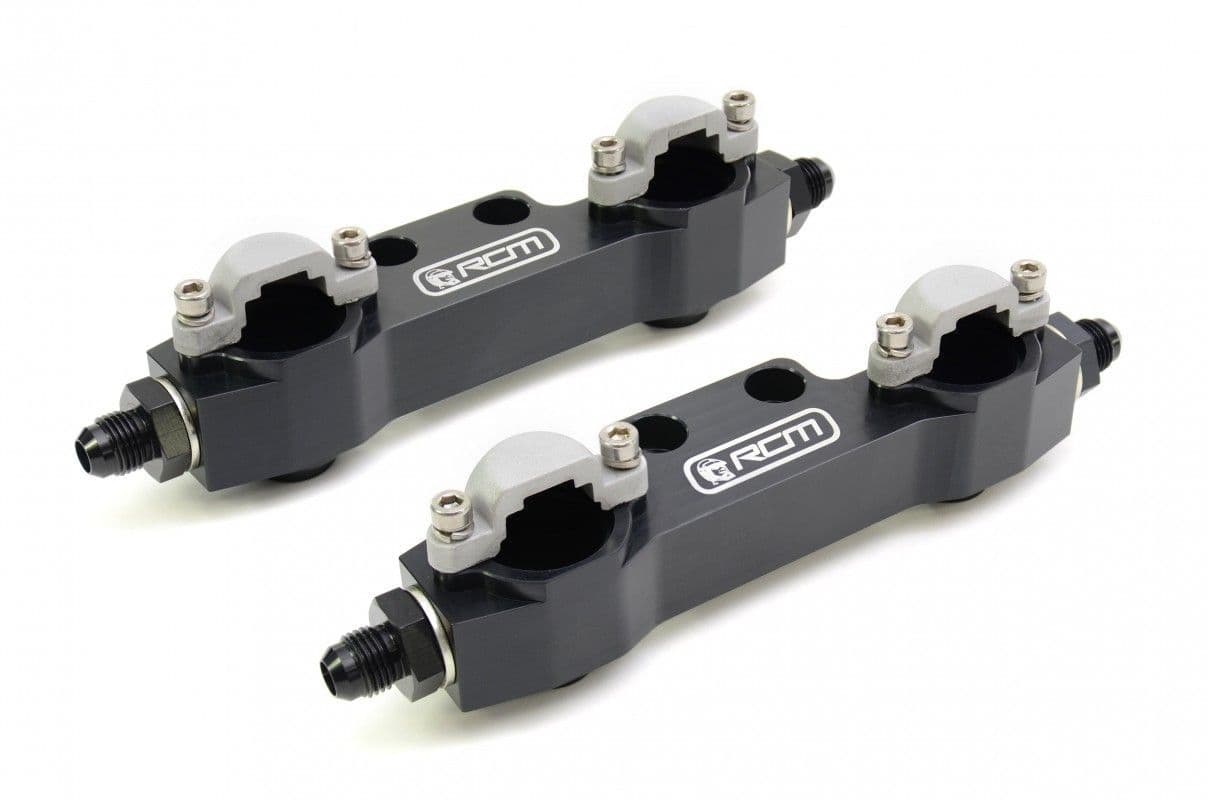

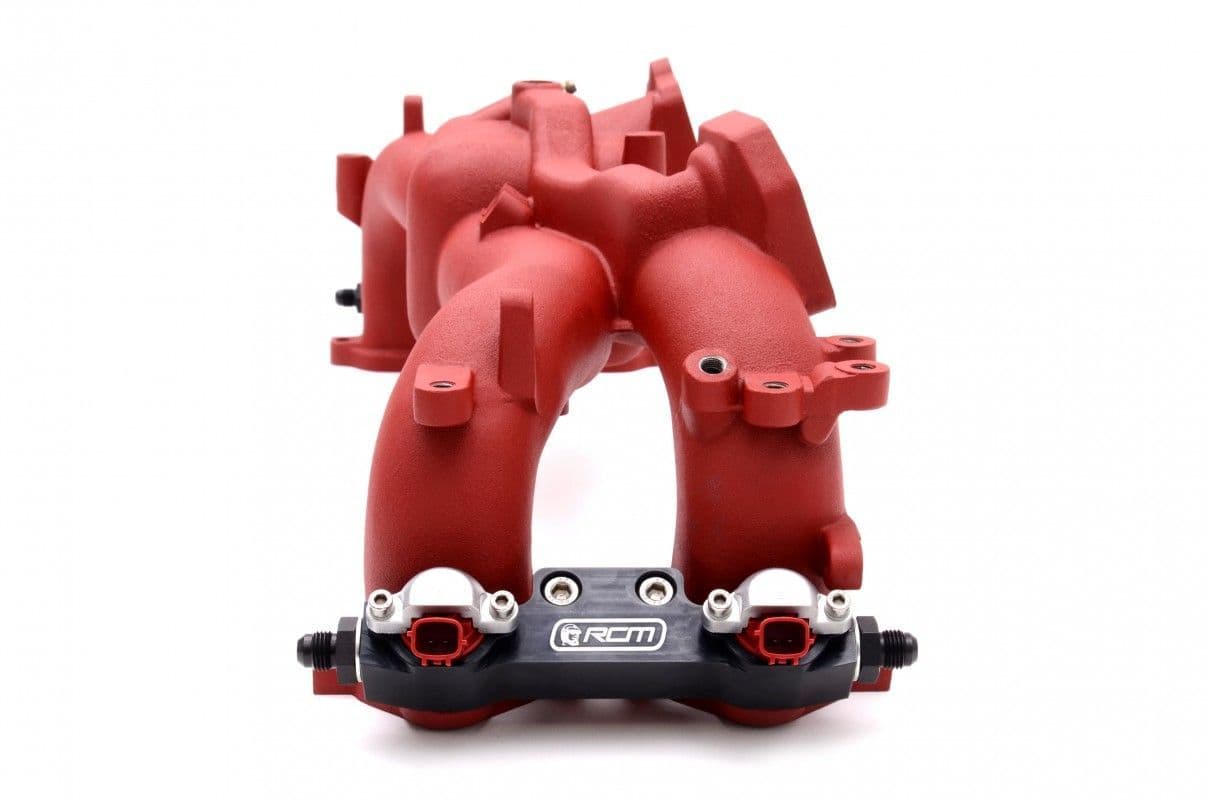

RCM Side Feed Parallel Billet Fuel Rail Pair V1 - V2

RCM1763

RCM Billet Fuel Rails are the perfect addition to any performance engine project.

These billet rails are designed and manufactured to cater for the V5 V6 side feed injectors where the need for improved fuel feed and routing is paramount.

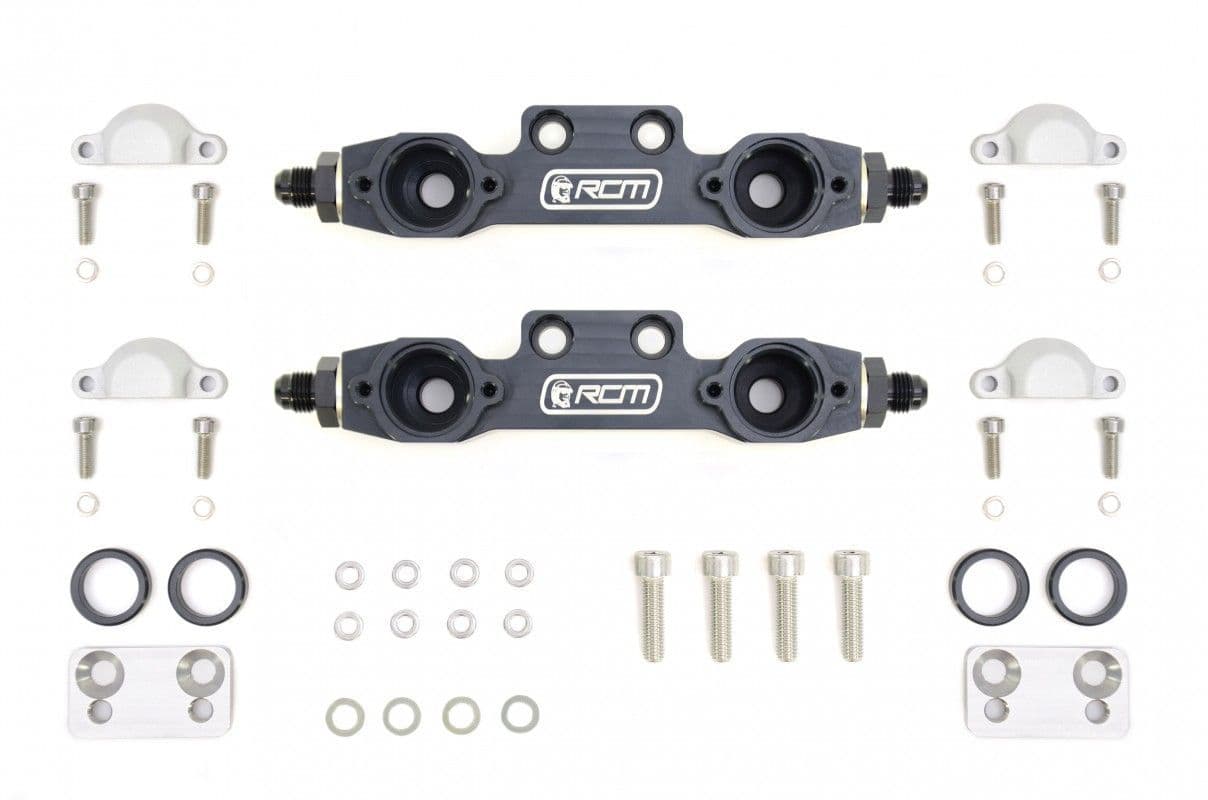

Precision cut from T6061 Billet Aluminium and finished in Military Grade Black Anodizing, each rail is supplied with anodized steel -6 shouldered male fittings ready to connect to your braided fuel lines. Also supplied within the kit are all necessary mounting brackets, stainless steel hex screws and rubber O-rings to enable a complete and thorough installation.

# technical specification

• Manufactured from T6061 billet aluminium.

• Military grade anodized finish.

• CNC machined aluminium mounting brackets.

• Anodized Steel Male / Male fittings for each rail end (15mm shoulder to -6 thread).

• X4 Nitrile Rubber O-Rings to seal each fuel rail end to its given fitting.

• X4 Injector Caps and capsheads for securing the injectors in place.

# key features

• Allows fitting of braided fuel lines to run increased line diameter and / or parallel fuel feed configuration.

• Allows removal of original fuel lines generating more space around the inlet manifold and offering a far cleaner appearance.

• Suitable for use with EARLY side feed fuel injectors only.

• Larger internal bore diameter within the fuel rails allowing for maximum fuel flow.

# confirmed applications

• Impreza Turbo 2000, WRX & STI V1 - V2 1992 - 1996

Please note - These rails are intended to be used with standard or uprated Version 5 Phase 2 type injectors.

Specifications

Brand
RCM
Product Code
RCM1763
